Quick Dateils Type:

Dateils products descrpition

1、 High Reliability 2、 High Efficiency and Energy Conservation 3、 Safety 4、Comfortable Operation 5. Convenient Maintenance 6、Multifunctional

products descrpition

 1、 High Reliability

Upgraded & enhanced front & back frames
Reinforced counterweight
Fully optimized layout of pipes
Waterproof connectors
Improved painting process

2、 High Efficiency and Energy Conservation
Patented dual-pump confluence and diffluence technology
Standard models provide the highest dumping height
Small turning radius
Green, turbocharged, intercooled engine

3、 Safety
Complete safety signs
Optional ROPS/FOPS cab
Flame retardant materials and EU-certified glass are used in the cab, offering higher safety

4、Comfortable Operation
Ergonomic design for more comfortable operation
Large space in the H-series cab
The low-noise and shock-absorbing cab
Electronic oil level indicator comes as standard
Optional models with adjustable directions

5. Convenient Maintenance
Leading-out grease fitting is convenient for lubrication
The brake caliper is exposed to facilitate servicing
Central electrical control box for easier servicing
Wide-opening hood for easier servicing & maintenance of engine
Convertible fuel tank
Optimized servicing marks

6、Multifunctional
Standard bucket
Rock bucket
Enlarged bucket
Flat sand bucket
Log grapple(single clamping arm)
Log grapple(double clamping arm)
Grass grapple
Snow blade
Side dump bucket
Quick coupling bucket
Quick coupling 4-in-1 bucket
Quick coupling log grapple
Quick coupling fork

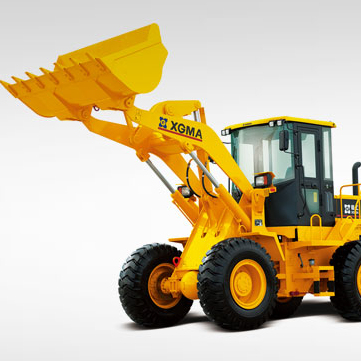

Model XG931H
Overall length(mm) 6970
Overall height(mm) 3330
Overall width(mm) 2245
Wheel base(mm) 2750
Ground clearance(mm) 358
Tread(mm) 1800
Bucket Width (mm) 2420
Turn radius(mm) 5280
Min.Turn radius outside of bucket (mm) 5860
Max. Dumping Height(mm) 3060
Dumping Reach(mm) 1020
Digging depth(mm) 100
Engine model YC6J125Z-T21
Rated power (kw) 92
Fuel comsumption per hour(g/kw.h ) 235
Rated speed (r/min) 2300
Max torque(N.m) 500
Operating Weight (Tonnes) 10
Rated Load(Tonnes) 3
Bucket capacity (m³) 1.7
Lifting time/Lifting, dumping and lowering(s) 5.7/10.5
Max Breakout force(KN) 100
Max.drawing force (KN) 87.5
Max. turning angle(°) ±35°
Climbing ability(°) ≤ 30 °
Fuel tank(L) 178
Hydraulic tank(L) 150
Working pressure of steering hydraulic system(MPa) 13
Working pressure of load hydraulic system(MPa) 16
Travel speeds(km/h) FORWARD 1ST 0~7
FORWARD 2ND 0~13
FORWARD 3RD 0~25
FORWARD 4TH 0~41
REVERSE 1ST 0~9
REVERSE 2ND 0~30
Gear Box Shantui
Axle Fenyi
Implement pump 206
Distibuting valve DF25-2C
Steering Hydraulic system BZZ5-500
Steering pump
Tyre size 17.5-25-12PR
Air Conditioning/Anti-mist when idleing
Heating
Radio/Cassette
Bucket and arm raiseing (limit height) Device ×
Hydraulic Operation system ×
Seat Buckle
Head lamp
Reversing Alarm (Back vehicle)
ROPS/FOPS ×
