Quick Dateils Type:

Dateils products descrpition

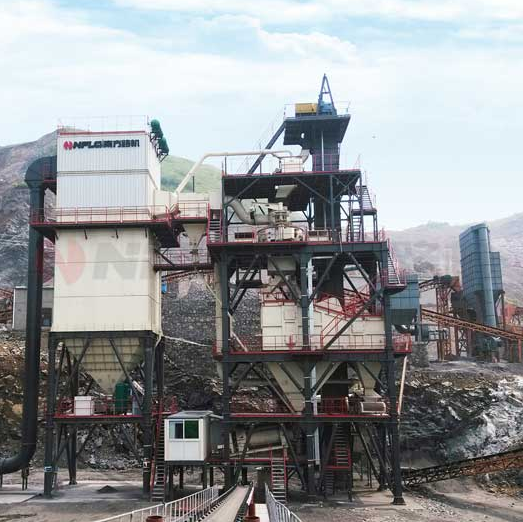

The middle-end S3 series dry-type shaping and sand making system developed based on NFLG's high-end V7 dry-type sand making system uses granite, limestone and other mine rocks as well as gravel tailings as raw materials and has various components, such as the vertical-shaft impact crusher, vibrating screen, dust collection module and transmission module, which makes the green, harmonious, intelligent, and service-oriented complete sand making equipment, thereby realizing clean production and providing important strategic significance for completely replacing the machined sand with the natural sand and accelerating the transformation of economic growth patterns. Base on US vertical shaft impact crusher, the S3 series dry-type shaping and sand making system makes breakthroughs in the vertical shaft crushing key technology and integrates the air screen classification function into the crushing and shaping crusher to realize the real technological breakthrough and to produce multiple effects of crushing, shaping, sand making and graduation on the crusher, thereby making the best particle shapes during crushing. In addition, the system uses the double vibration self-synchronous linear screen , offline and pulsed dust collector to make high-quality finished aggregate and sand, thereby realizing clean production and significantly improving the technological production process compared to the middle-end shaping and sand making equipment developed by other manufacturers in China.

products descrpition



Parameter :

Model S3-615 S3-1030 S3-1545
Function Sand making shaping Sand making shaping Sand making shaping
Main Machine USF322H USF394H USF496H
screen ZS2052 ZS2468 2×ZS2264
feeding size(mm) 0-40 0-40 0-40
Max processing capacity(t/h) 60 150 100 300 150 450
total power(kW) 420 450 720 760 1080 1080
L*W*H(m) 30.5×9.5×22.5 34×10×28 34×10×30
