Quick Dateils Type:

Dateils products descrpition

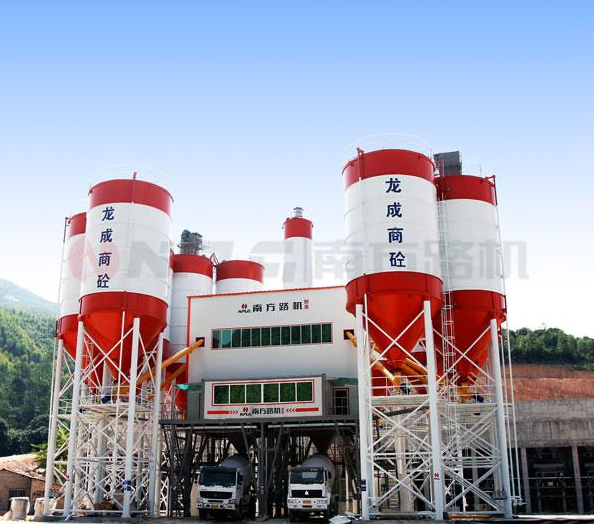

The main types of Common Commercial Concrete Batching Plant are:HZS120, HSZ180, HZS200, HZS225, HZS250, HZS300 and HZS120 and have advantages such as environmental-protection, energy-saving, high-efficiency, stability and safety.

products descrpition



Parameter :

Model HZS120 HZS180 HZS200 HZS225 HZS250 HZS300
Design production capacity (m3/h) 100 150 200 225 250 300
Mixer(twin spiral/twin shaft)  Mixer(twin spiral/twin shaft)  Mixer(twin spiral/twin shaft)  Mixer(twin spiral/twin shaft)  Mixer(twin spiral/twin shaft)  Mixer(twin spiral/twin shaft)  Mixer(twin spiral/twin shaft)
Mixer model JS2000 JS3000 JS4000 JS4500 JS5000 JS6000
Power(kW) 37x2 55x2 75x2 75x2 90x2 65x4
Output capacity(L) 2000 3000 4000 4500 5000 6000
Aggregate size(mm) ≤80 ≤80 ≤80 ≤80 ≤80 ≤80

Aggregate dosage hopper( semi-under ground ) 20x4 30x4 30x4 30x4 40x4 30x4
Aggregate dosage hopper (under ground) hopper capacity (m3)   4 Hopper 4 Hopper 4 Hopper 4 Hopper 4 Hopper 4 Hopper
Inclined beltconveyor carrying capacity(t/h) 500 600 600 900 600 1200
Weighing range and accuracy  Weighing range and accuracy  Weighing range and accuracy  Weighing range and accuracy  Weighing range and accuracy  Weighing range and accuracy  Weighing range and accuracy
Stone scale(kg) (800-2400)±2% (1200-3600)±2% (1600-4800)±2% (1800-5400)±2% (2000-6000)±2% (2400-7200)±2%
Sand scale(kg) (500-1600)±2% (800-2400)±2% (1050-3200)±2% (1200-3600)±2% 1300-4000)±2% (1600-4800)±2%
Cement scale (kg) (400-1200)±1% (600-1800)±1% (800-2400)±1% (900-2700)±1% (1000-3000)±1% (1200-3600)±1%
Fly ash scale(kg) (130-400)±1% (200-600)±1% (250-800)±1% (300-900)±1% (300-1000)±1% (400-1200)±1%
Water scale(kg) (150-500)±1% (250-800)±1% (400-1200)±1% (400-1200)±1% (400-1200)±1% (400-1200)±1%
Liquid additive scale(kg) (15-50)±1% (25-80)±1% (40-120)±1% (40-120)±1% (40-120)±1% (60-180)±1%

Total power consumption(kW)exclude screw conveyor,silo 155 200 265 265 330 416
Discharging height(m) 4.1 4.2 4.1 4.1 4.1 4.1
