Quick Dateils Type:

Dateils products descrpition

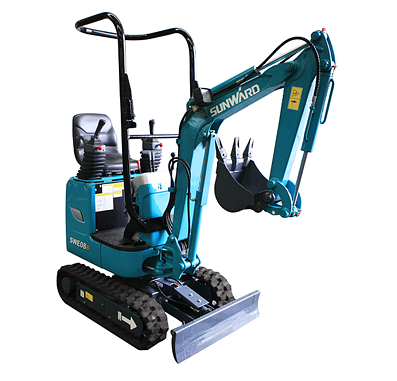

Strong power system and high reliability - Using imported engine and hydraulic system, stable and durable. ▲ Working range - Telescopic crawler, able to walk and work in narrow and confined space range. ▲ Easy to maintain - Large maintenance space, convenient for the periodic maintenance of various parts. ▲ Delicate and beautiful appearance - Streamlined design, smooth and beautiful appearance.

products descrpition

Parameter List
Size(L×W×H) 2640×740×2125mm

Outline dimension

A)Wheel-base 900mm
B)Crawler length 1224mm
C)Ground clearance of platform 410mm
D)Tail slewing radius of platform 750mm
E)Chassis width 740/900mm
F)Crawler width 180mm
G)Ground clearance of chassis 141mm
H)Crawler height 330mm
I)  Shipping length 2640mm
J) Shipping height 2125mm
K) Shipping width 740mm

Operating range

a)Max. digging height 3082mm
b)Max. dumping height 2304mm
c)Max. digging depth 1824mm
d)Max. vertical digging depth 1439mm
e)Max. digging radius 3178mm
f) Max. digging reach at ground level 3082mm
g)Max. lifting height of bulldozer blade 225mm
h)Max. digging depth of bulldozer blade 225mm
I) Min. slewing radius 1221mm
Bulldozer blade(Length×Width) 900×197mm

Performance parameters

Gross weight(rubber track) 1.01t
Standar bucket capacity 0.022m³
Bucket digging force 9.4kN
Bucket rod digging force 5.8kN
Traveling speed 2.9/1.5km/h
Ground pressure 24.5kPa
Swing speed 8.2rpm
Engine Brand Yanmar
Power 7.2kW/2400rpm
Displacement 0.57L

Oil tank capacity

Diesel 10L
Hydraulic oil 9.5L
