Quick Dateils Type:

Dateils products descrpition

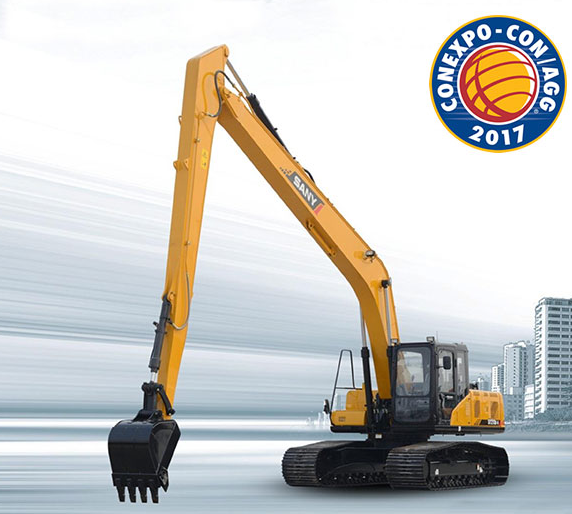

The Tier III engine is equipped with a new controller to realize precise fuel injection for efficiency. Fuel consumption is improved by 10% over the previous generation. The original DOMCS dynamic optimal intelligent matching control system maintains a perfect combination of engine output and main pump output. The result is fast, powerful implement operation. Well suited to ultra-long reach work The newly designed vibration reduction system, multiple noise reduction systems substantially improve operator comfort.

products descrpition

   Engine
Engine model
Cummins QSB6.7-190
Rated power
145/2000kW/rpm
Max.torque
931/1400N.m/rpm
Displacement
6.7L











Operation Range
Operating weight
29610kg
Max. digging height
14070mm
Max. dumping height
11820mm
Max. digging depth
14190mm
Max. digging reach
17770mm
Min. swing radius
6515mm













Dimensions
Transport length
13790mm
Transport width
3180mm
Transport height
3500mm
Upper width
2710mm
Cab height
3050mm
Tail swing radius
2890mm
Min. ground clearance
440mm













Undercarriage/Working Device
Std. track shoe width
800mm
Bucket capacity
0.35m³
Track shoes(per side)
49
Upper rollers
2
Lower rollers
9









Performance
Travel speed
5.5km/h
Swing speed
3.2km/h
Bucket digging force
88.4kN
Arm digging force
57kN
